Cable Hot Stripping Crimping & Housing Insertion MachineCable Hot Stripping Crimping & Housing Insertion Machine

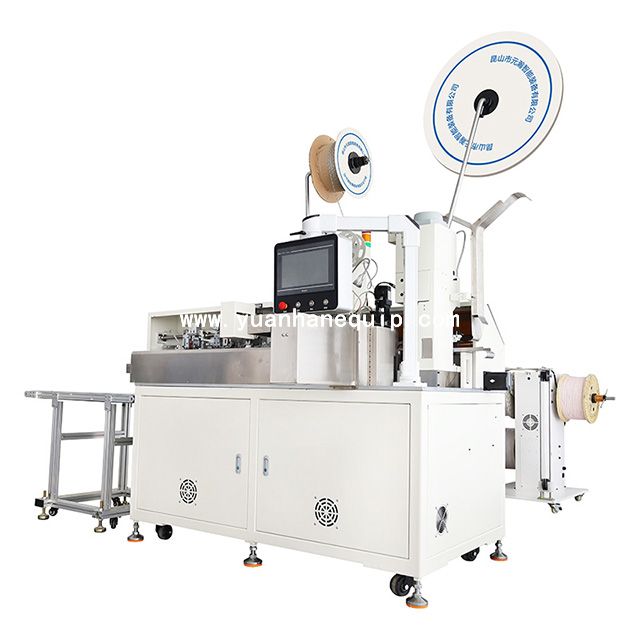

The cable hot stripping crimping & housing insertion machine is a versatile and efficient tool designed for the precise stripping, crimping, and insertion of housing onto cables. This machine is ideal for a wide range of applications in industries such as electronics, automotive, and telecommunications.

Model:
  • YH-CJKRB
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

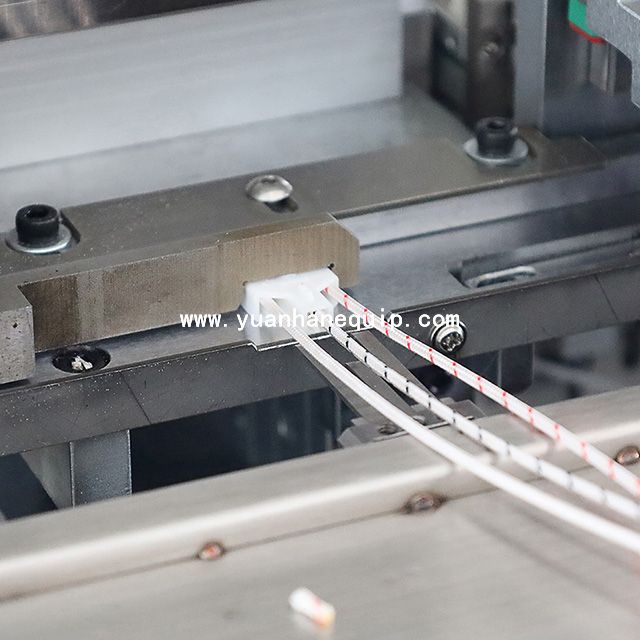

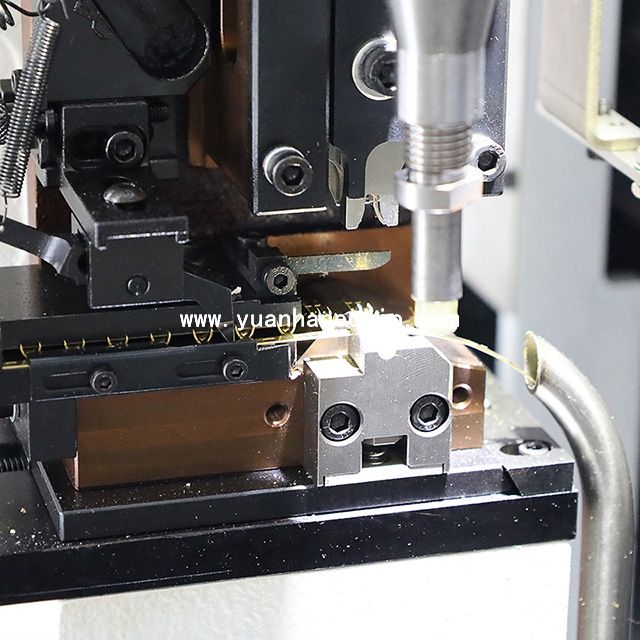

○ Featuring advanced technology and high-quality components, this machine is capable of handling various cable sizes and types with ease. The hot stripping function ensures clean and accurate cable stripping, while the crimping feature produces secure and reliable connections. The housing insertion capability allows for quick and seamless assembly of cables with housing.

○ With user-friendly controls and a robust construction, this machine is easy to operate and built to withstand the demands of continuous use in a production environment. Its compact design saves valuable workspace and can be easily integrated into existing production lines.

○ Overall, the cable hot stripping crimping & housing insertion machine is a must-have tool for any business looking to streamline their cable assembly process and achieve consistent, high-quality results. Trust in this machine to deliver precision, efficiency, and reliability for all your cable processing needs.

Model

YH-CJKRB

Function

wire cutting, hot stripping, two sides crimping, one side housing inserting

Wire size

AWG#20 - #28 (wire outer diameter ＜ ∮2.5mm）

Wire color

3 colors

Wire cutting length

50mm-1000 mm (setting units:0.1 mm)

Cutting tolerance

0.1 mm

Stripping length

1.0 - 8 mm

Crimping machine

19600N (2T equivalent)

Crimping stroke

30 mm

Crimping applicator

Universal OTP crimping applicator

Detection device

Pressure drop detection, wire presence detection, crimping error detection, terminal presence detection, terminal overload detection, terminal insertion detection, pressure sensor device (optional), CCD visual inspection (optional)

Control method

single chip microcomputer control

Internal control voltage

DC24V

Power supply

Single-phase AC200V/220V 50HZ 10A

Compressed air

0.5MPa, about 170N/min

Efficiency

450 pcs/h (calculated based on three wires)

Operating humidity range

30%-80%RH, no condensation

Warranty period

2000 hours or 1 year (excluding consumables)

Dimensions

1560 ( W ) × 1100 ( D )×1600( H)

Weight

About 800kg​
