Cable Two Ends Crimping and Housing Inserting Machine
Cable Two Ends Crimping and Housing Inserting Machine
Cable Two Ends Crimping and Housing Inserting Machine

Cable Two Ends Crimping and Housing Inserting MachineCable Two Ends Crimping and Housing Inserting Machine

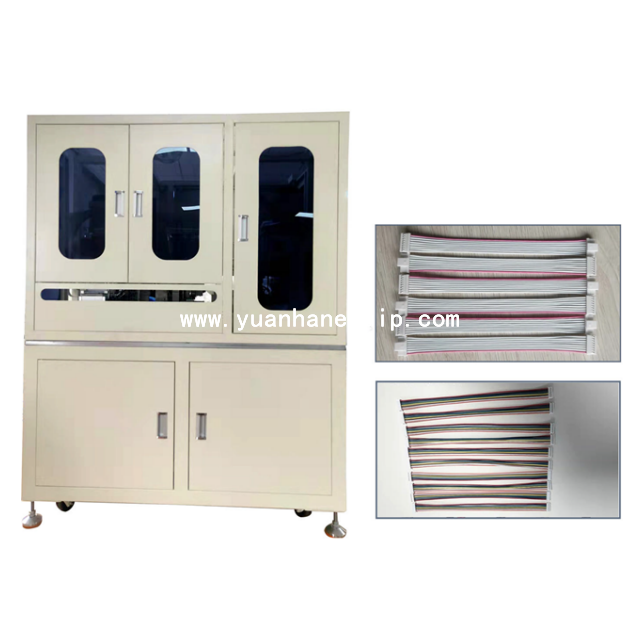

The cable two ends crimping and housing inserting machine is a versatile and efficient tool designed for crimping and inserting housing onto cables with precision and ease. This machine is ideal for a wide range of applications in various industries, including automotive, electronics, and telecommunications.

Model:
  • YH-CJK10
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

○ Equipped with advanced technology, this machine offers a high level of accuracy and consistency in crimping and housing insertion processes. The dual-end crimping feature allows for simultaneous crimping of both ends of the cable, saving time and increasing productivity. The housing inserting function ensures a secure and reliable connection between the cable and housing, preventing any potential damage or disconnection.

○ With a user-friendly interface and intuitive controls, operators can easily set up and adjust the machine to meet specific requirements. The machine is also equipped with safety features to ensure the protection of operators and prevent any accidents or injuries.

○ Servo motor and stepper motor control, with high precision and high efficiency

○ Supports crimping and housing inserting at both ends, or crimping housing inserting at one end and tinning at the other end.

○ Detection device: wire absence detection, terminal absence detection, crimping force detection (CFM), housing connector plug-in detection (visual CCD).

○ The length of the wire cut should be equal.

Model

YH-CJK10

Applicable wire

AWG#32-AWG#18

Function

Both ends crimping and housing inserting

One end crimping and housing inserting + the other end tinning/half stripping/no stripping

Capacity

AWG#30: about 9,000 holes per hour (within 100MM of wire length)

AWG#28-AWG#24: about 1,2000 holes per hour (within 100MM of wire length)

AWG#22-AWG#18: about 10,000 holes per hour (within 100MM of wire length)

Cutting length

Standard 45MM-500MM (special requirements: shortest 22MM, longest 2500MM, special requirements need to be customized)

Parallel wires: Standard length: 80MM-500MM

Cutting accuracy

Cutting length ＜ 100MM, deviation ＜ 0.3MM+ (set cutting length x 0.002); Cutting length ＞ 100MM, deviation＜ 0.3MM+ (set cutting length x 0.002)

Stripping length

Front end: 1.0-4.0MM (half stripping length 2.0-6.0MM) Rear end:1.0-8.0MM (half stripping length 2.0-8.0MM)

Applicable applicator

horizontal feed applicator

Crimping capacity

2.0T terminal machine-set (crimping at both ends, equipped with two terminal crimping machines)

Control model

10-inch touch screen control screen, intelligent PLC control

Detection device

wire absence detection, terminal absence detection, crimping force detection (CFM), housing connector plug-in detection (visual CCD)

Power

Single phase: AC210V~AC230V 50/60HZ 10A

Compressed air

0.6-0.8MPa (need to use clean and dry air source)

Dimensions

2400Wx 1600Lx1750H (mm) excluding wire rack length

Weight

about 900KG
