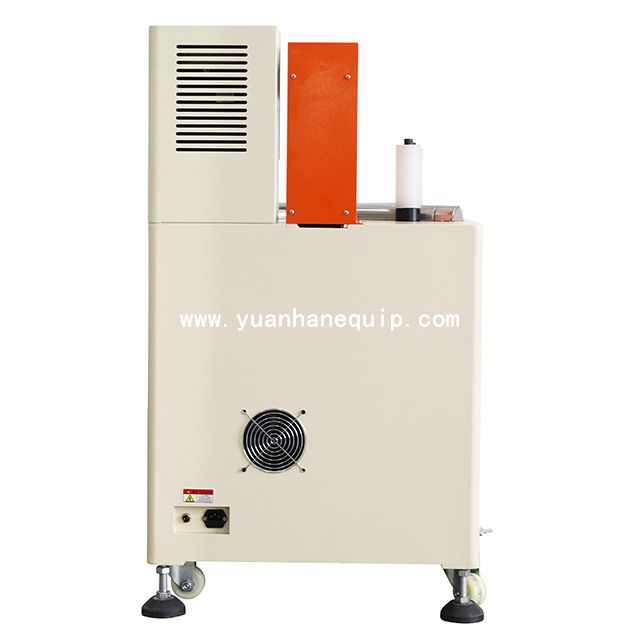

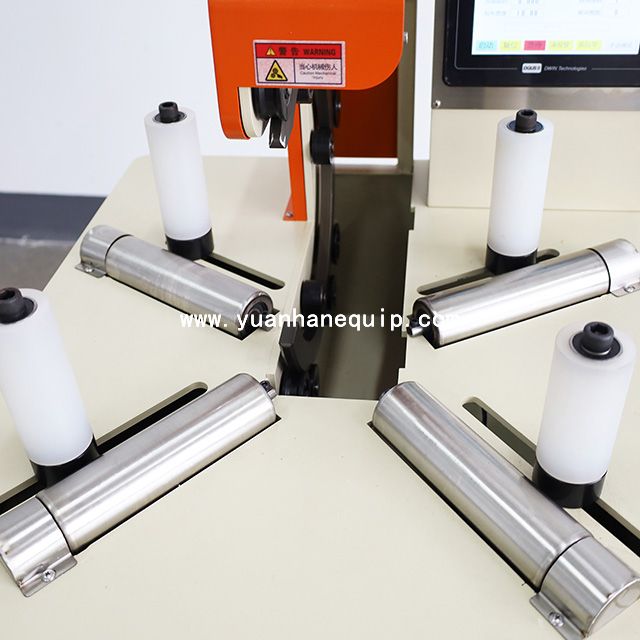

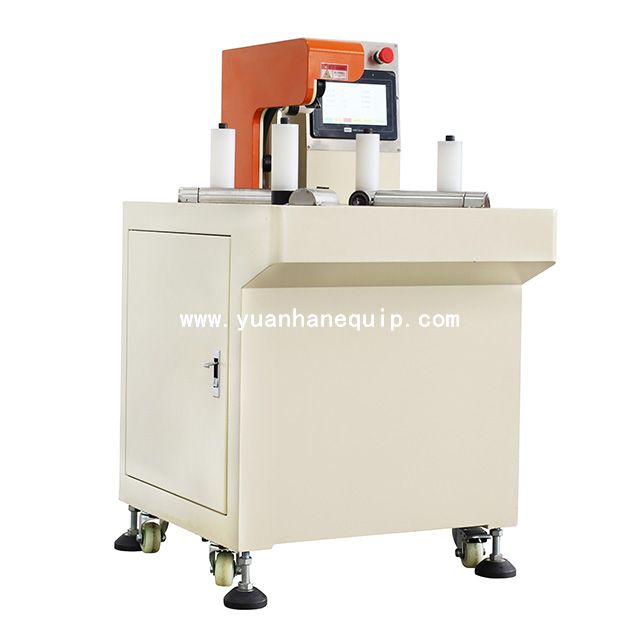

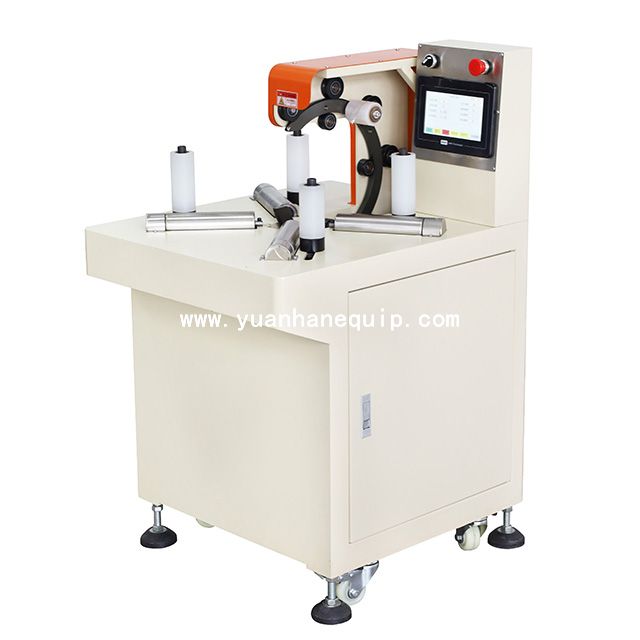

Cable Coils Stretch Film Packing Machine

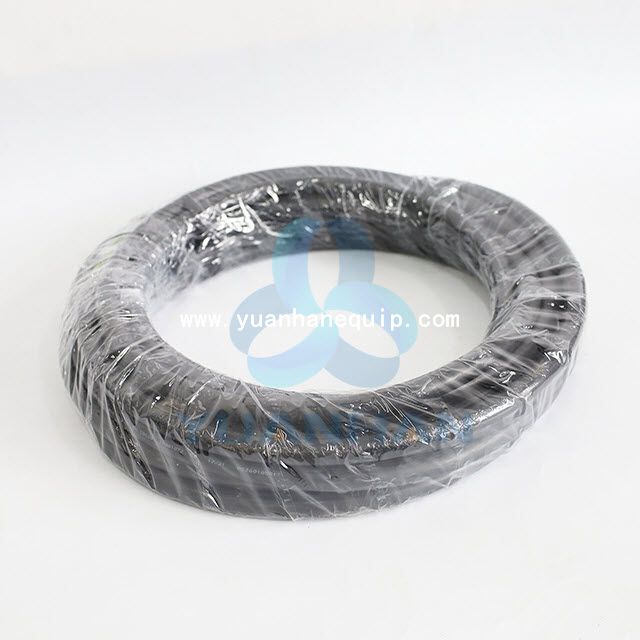

This machine is suitable for wrapping hose coils, tires, cable coils, steel coils, etc. with stretch film.

Model:	YH-XCBZ01
Brand:	Yuanhan

Inquire

Share to:

Description

Specifications

○ One-key operation, simple and efficient, support customization

○ Fast packaging, flat and beautiful wrapping effect

○ Different packaging materials can also be changed as needed

Model	YH-XCBZ01
Processing capacity	approx. 120 cycles/hour
Processing specifications	inner diameter:120mm (minimum) outer diameter:400mm (maximum) height:50-120mm
Film specification (conventional)	inner diameter 26mm* outer diameter 65mm* width 63mm
Control mode	full digital control
Power supply	single-phase/three-phase AC220V
Power	1.2KW (maximum)
Operating temperature range	5℃~40℃ Ambient temperature
Working humidity range	30%~80%RH without condensation
Warranty period	2000 hours or 1 year (excluding consumable parts)
Dimensions	length 600mm × width 700mm × height 1070mm
Weight	about 100kg
Note	Processing capacity varies depending on coil size/film specification.
