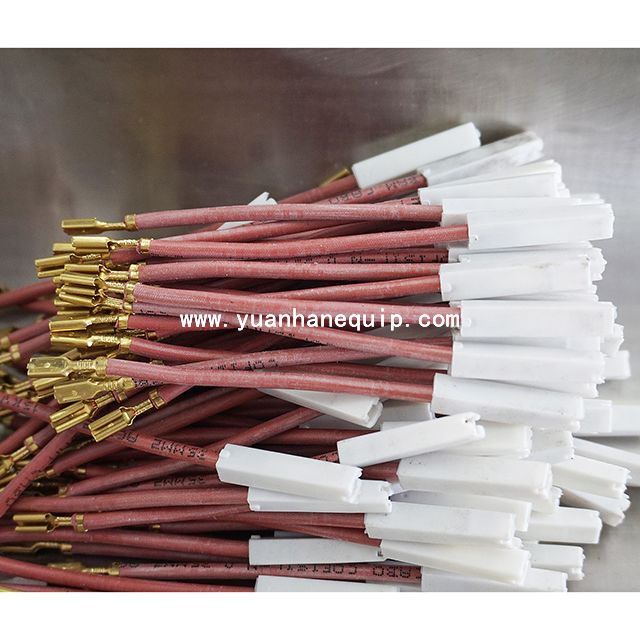

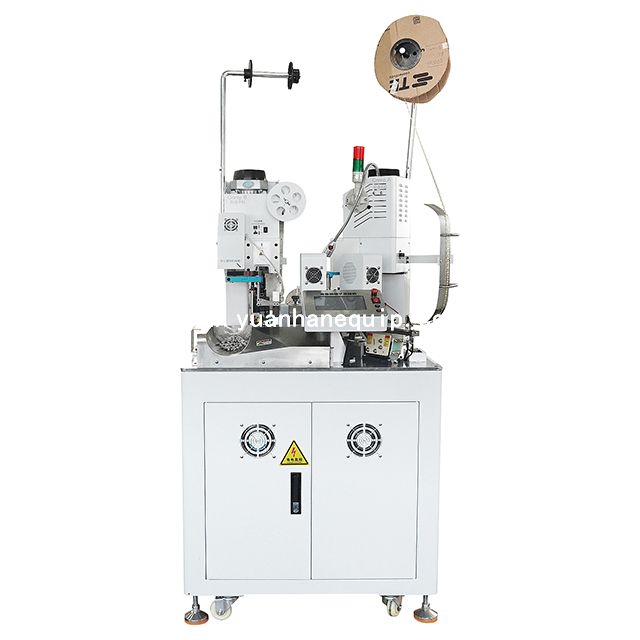

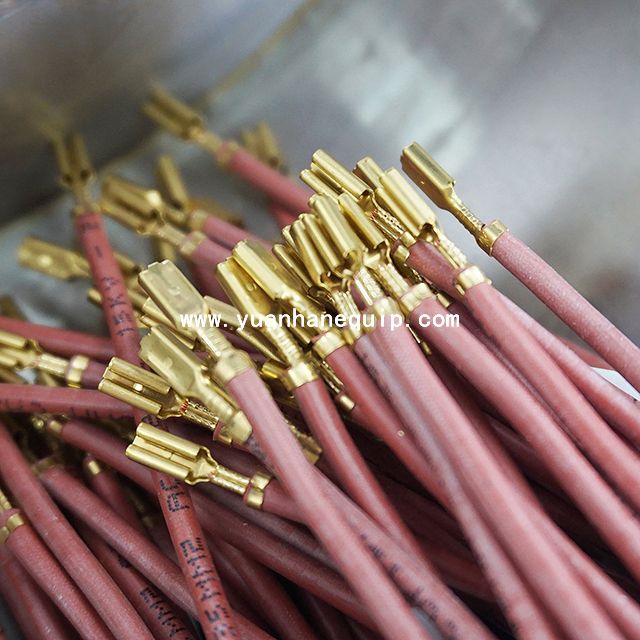

This is a fully automatic terminal crimping and insulation sleeves loading machine. It can crimp terminals on 2 sides and insert insulated sleeves on 1 side of the cable.
Model:
|
|
Brand:
|
|
Function: wire cutting, stripping, 2-side terminal crimping and 1-side insulation sleeves loading
Length and depth of wire cutting & stripping can be adjusted on LCD touch screen, convenient and simple operation.
High-power precision vibration feeding, no jam or return
Model | YH-H01 |
Function | wire cutting, stripping, 2-side terminal crimping and 1-side insulation sleeves loading |
Stripping range | 0-15mm |
Cutting tolerance | ±2% |
Processing length | 50-9900mm |
Processing efficiency | 1700pcs/h within 300mm |
Crimping force | 2-3T |
Wire range | AWG16-24 AWG single wire |
Applicable crimping applicator | OTP horizontal applicator, straight applicator |

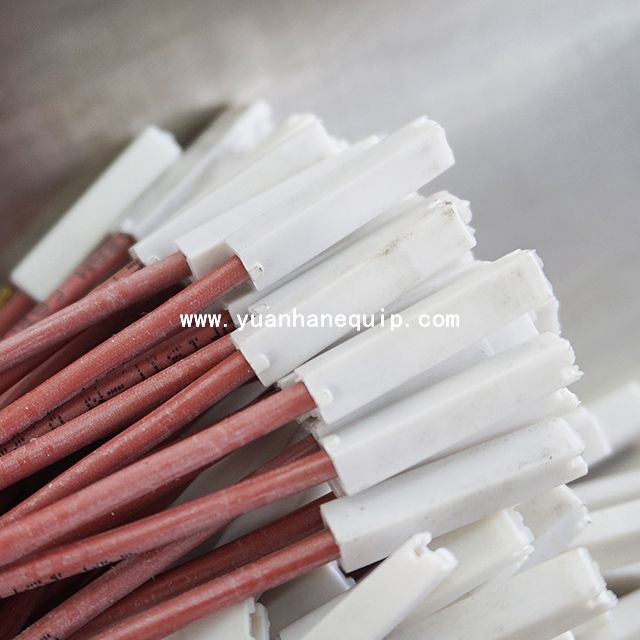

Applicable insulation sleeves | 187, 250, 110 and other straight tubular insulation sleeves |
Power supply | AC 220V 2.5Kw |
Air pressure | 0.5-0.7Mpa |
Dimensions | 750mm*1000mm*1600mm (excluding accessories) |
Weight | 350kg |
